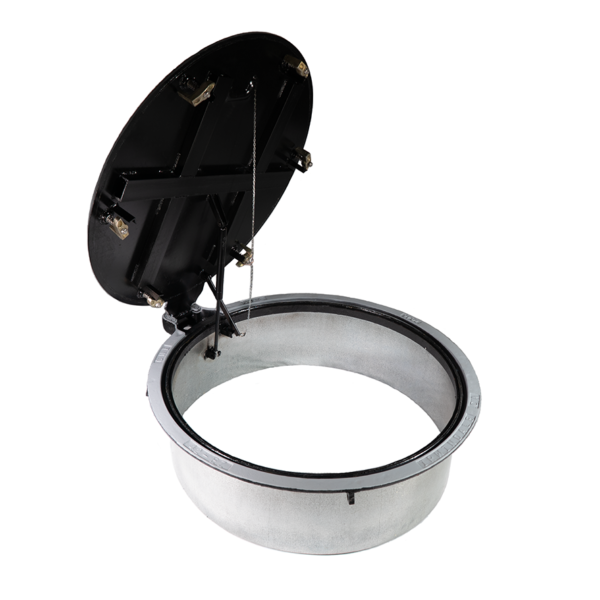

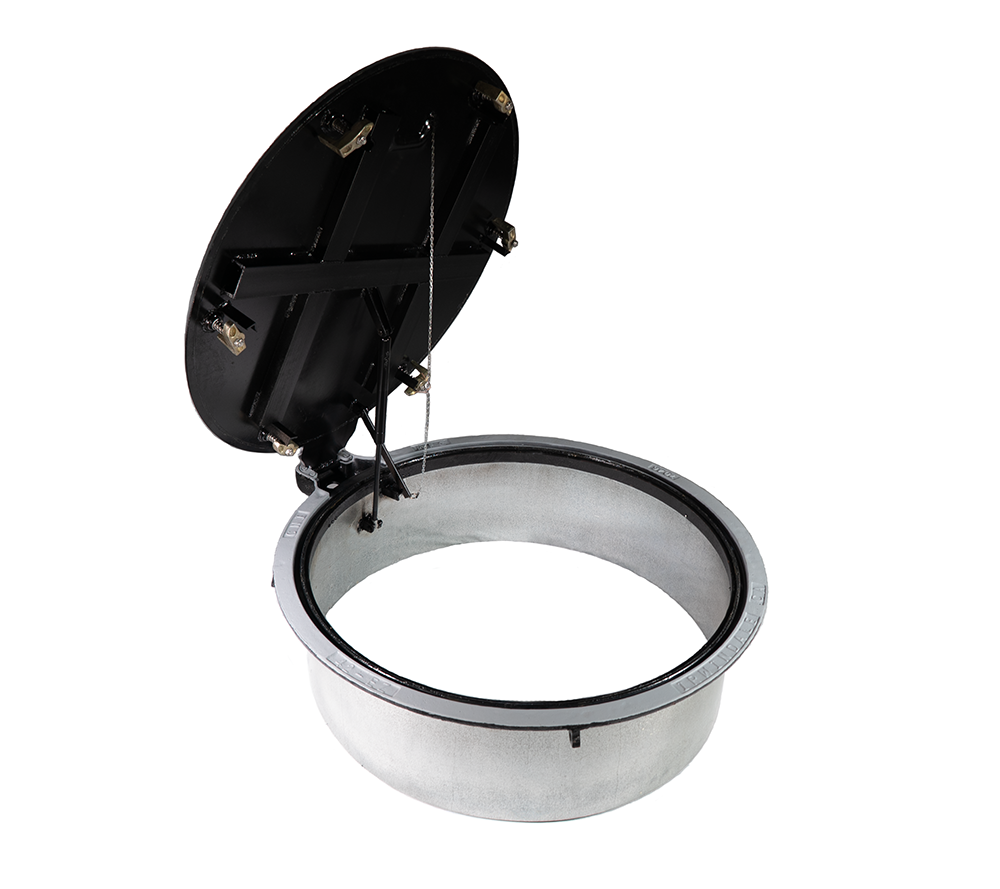

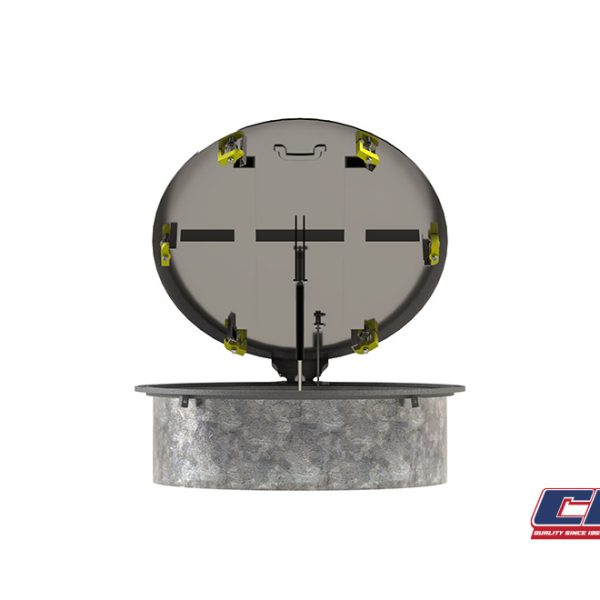

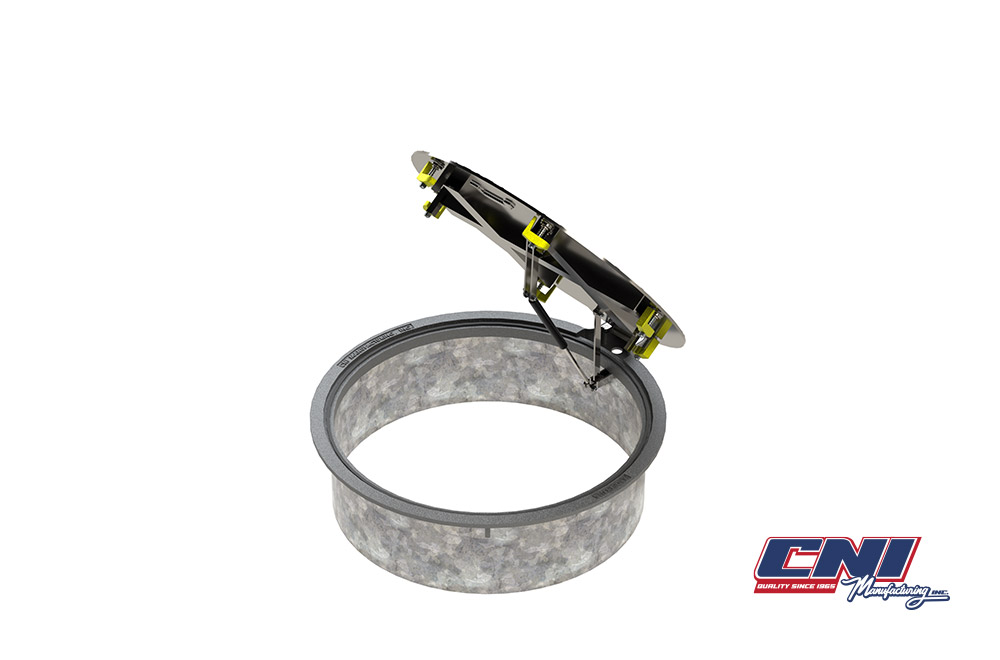

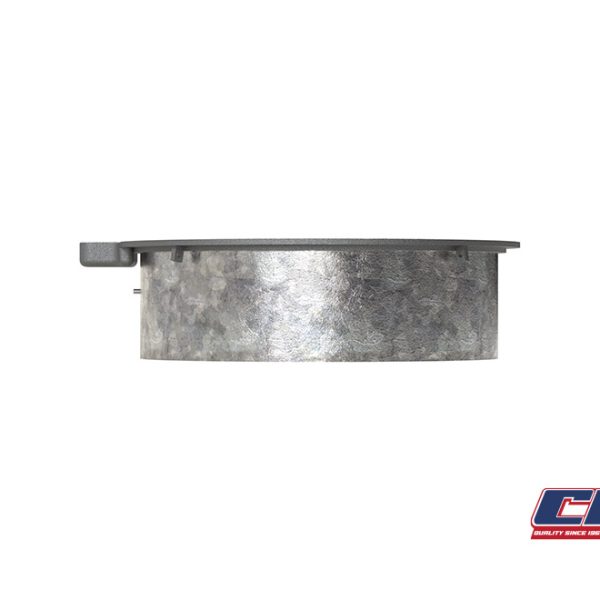

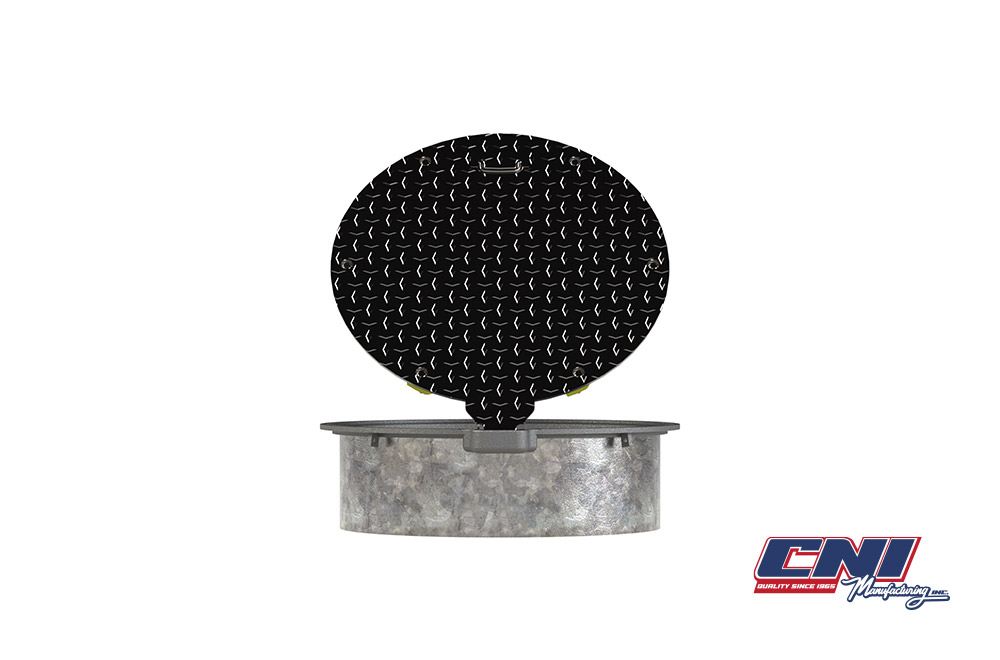

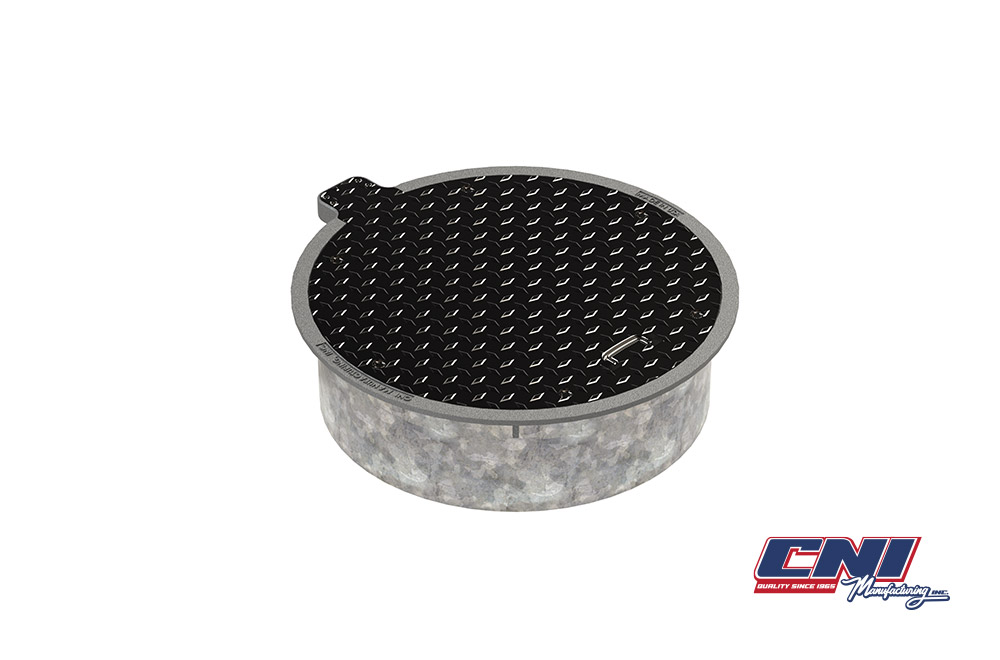

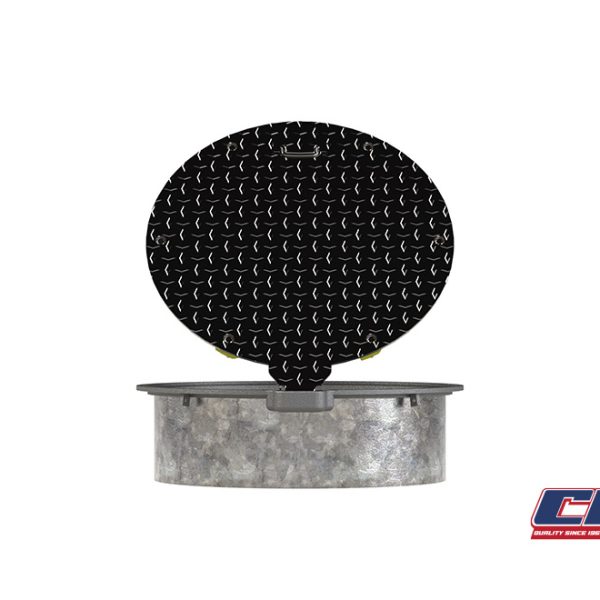

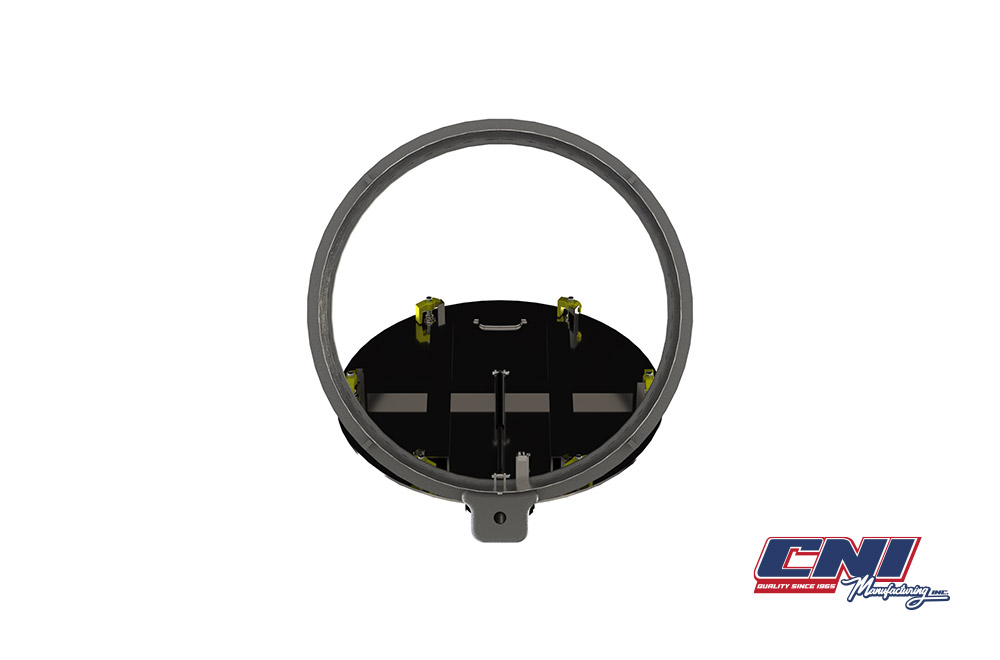

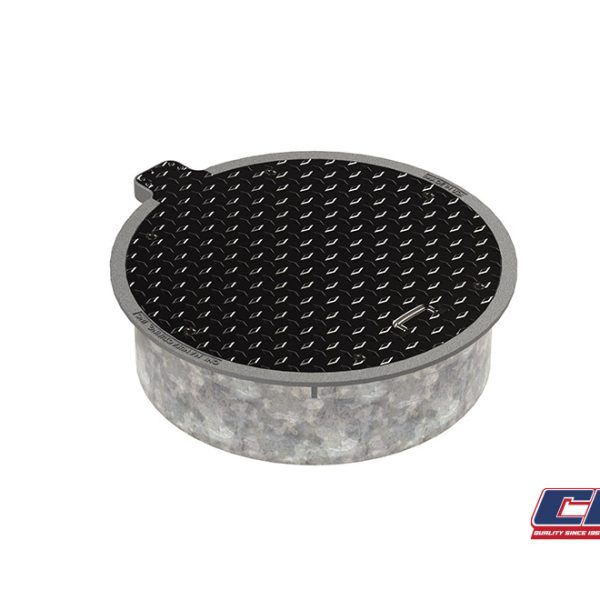

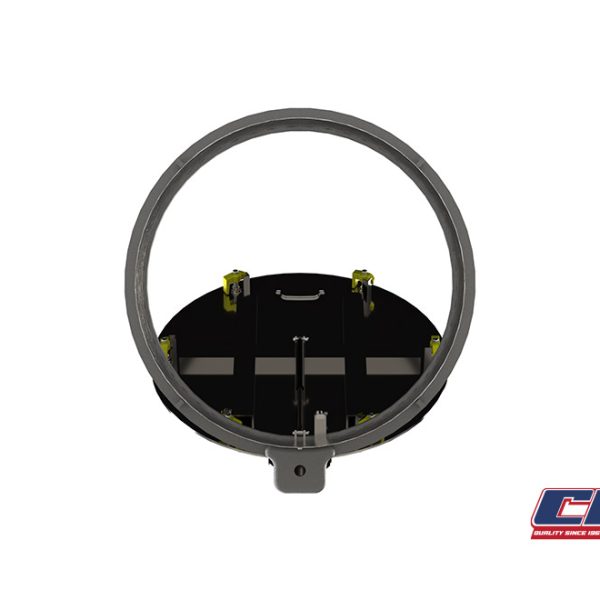

E/Z Lift manhole

E/Z Lift manhole *Lifting Capacity of **25LBS.

Specifications:

Outer ring: Heavy Ductile Iron ring
Skirt: 14 Gauge Galvanized sheet metal

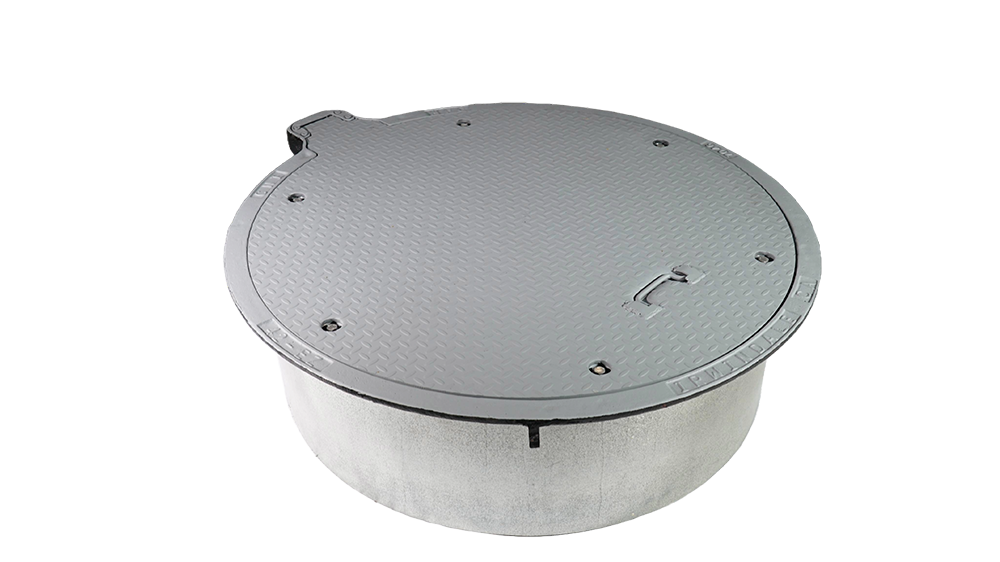

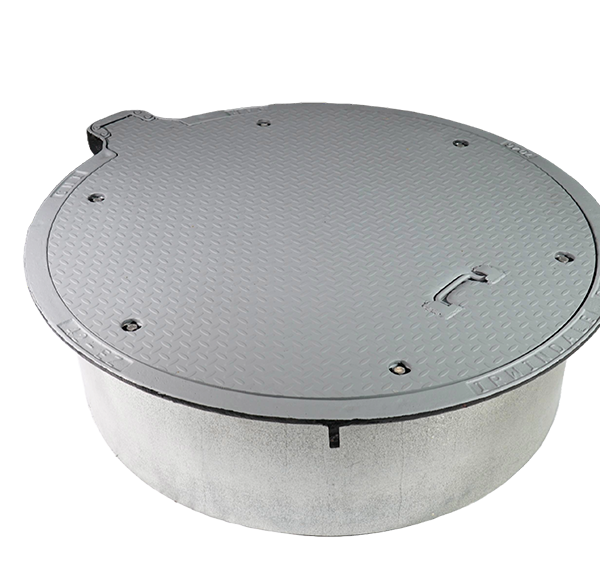

Cover: 3/8″ reinforced floor plate, complies with H20 rating.
*NOTE: By request can add reinforcement for H90 rating*
(MTA BUS TERMINALS, AIRPORTS, LANDFILLS, ETC.)
Cover sealing gasket: One piece rectangular 3/8″ x 1/2″ rubber ring in a 1/4″ deep groove into the Ductile ring.

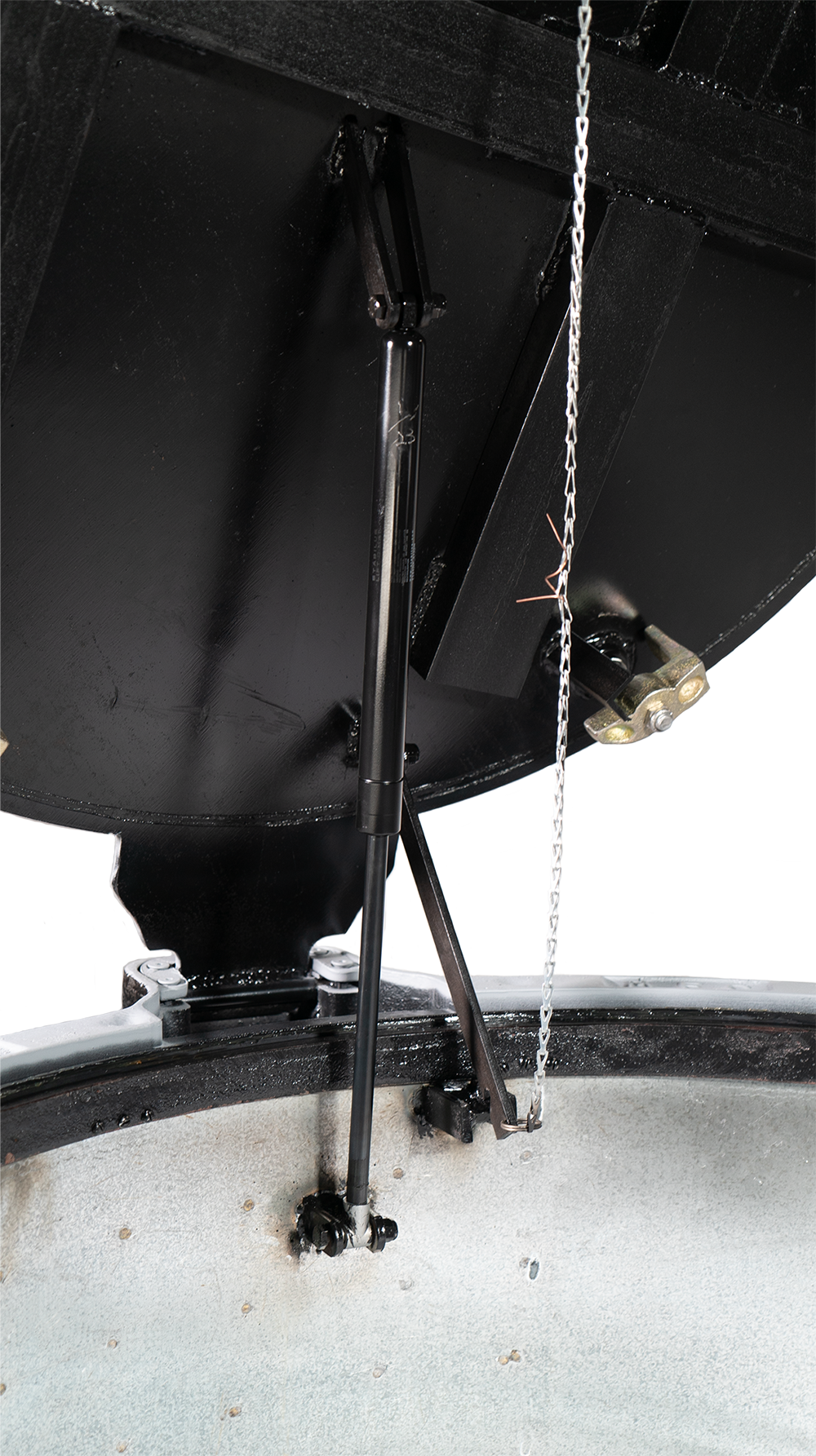

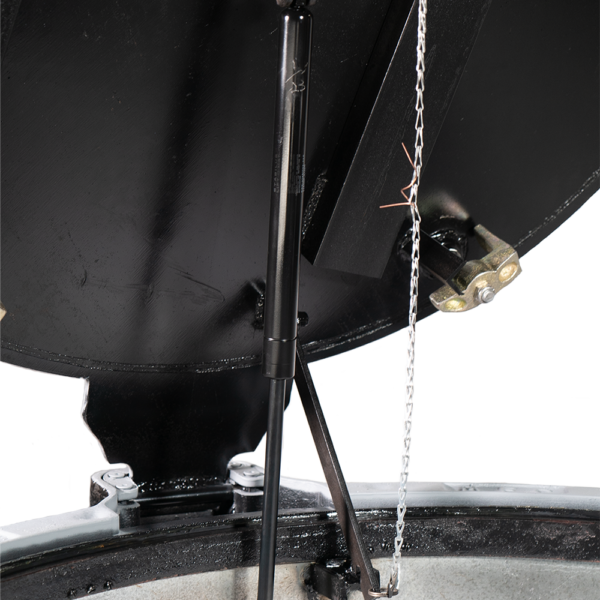

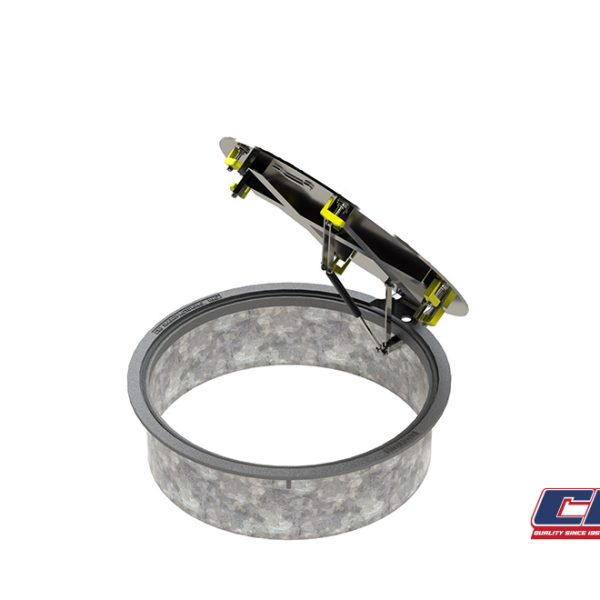

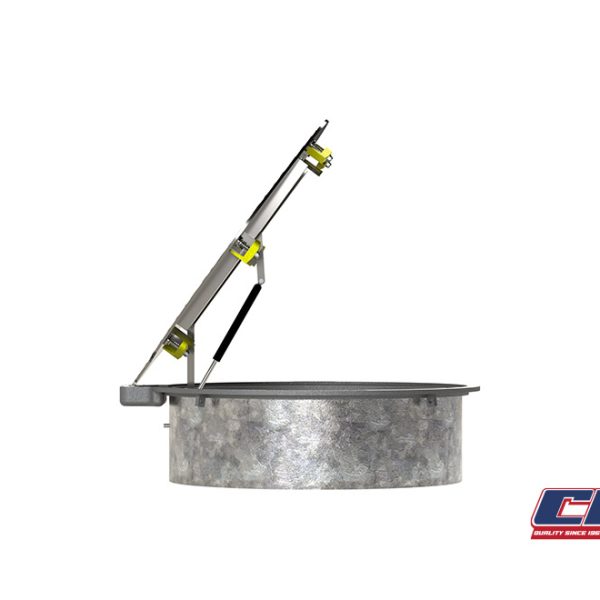

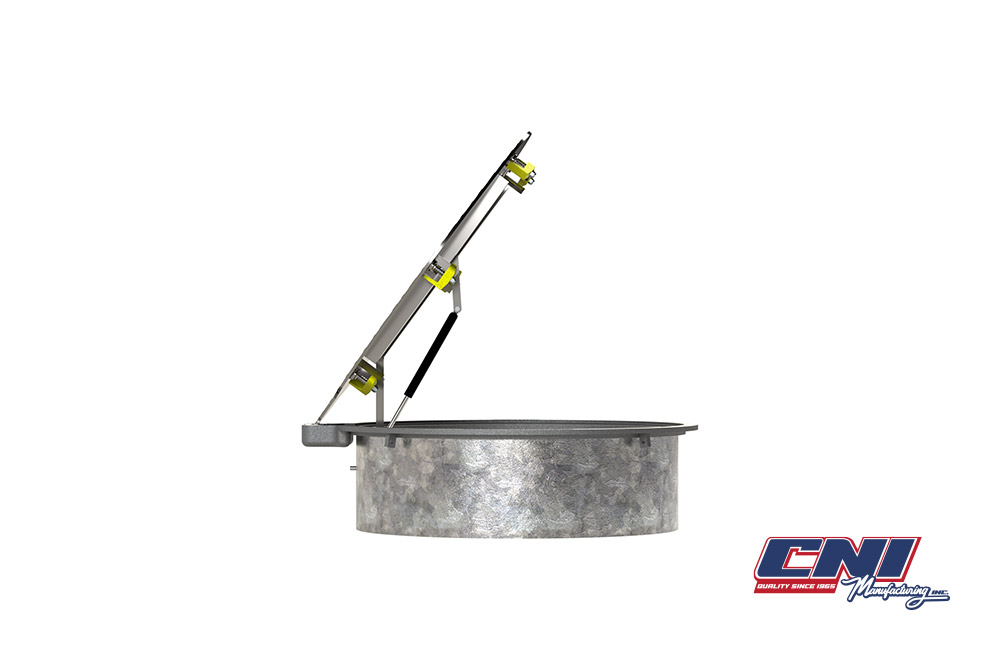

Gas shock: Will withstand up to +200 degrees and -40 degrees and coated to handle total humidity. Will loose only 1% of strength per year. 2 Gas shocks require for 48″.

Features:

CNI offers a 180-310+ lb. cover that has proven itself over the last 50 years with its H20 rating. The end user will be lifting only 25lbs – 35lbs with the help of a gas shock, which prevents workman’s compensation.
The durability of the Ductile iron ring and steel cover is long lasting, no need to change to a composite cover.

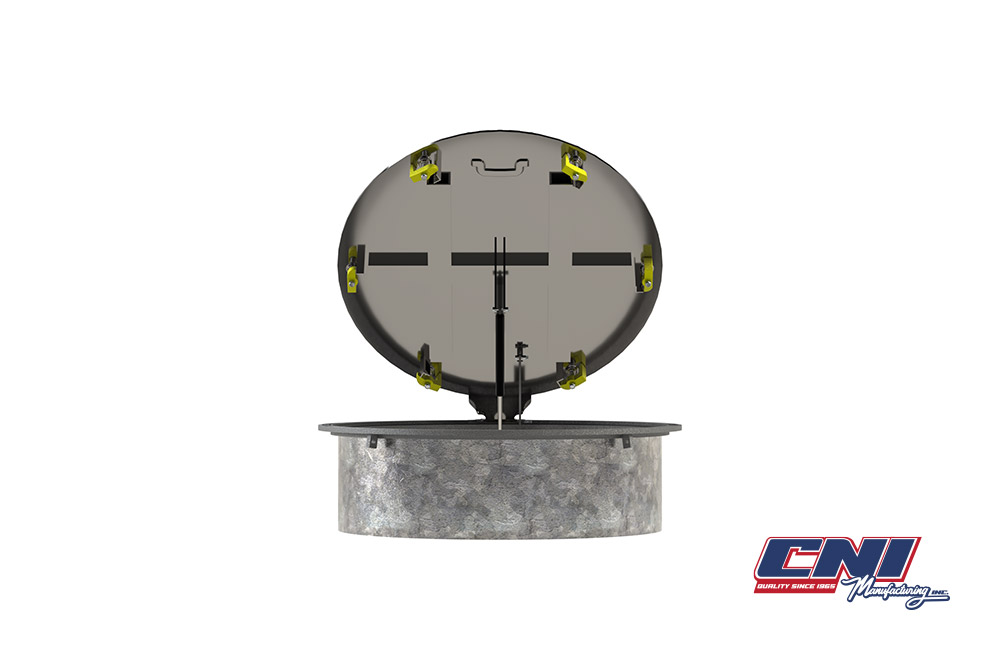

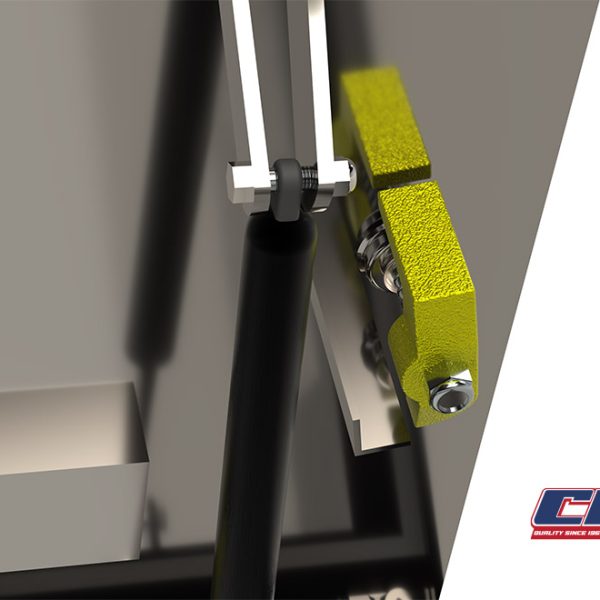

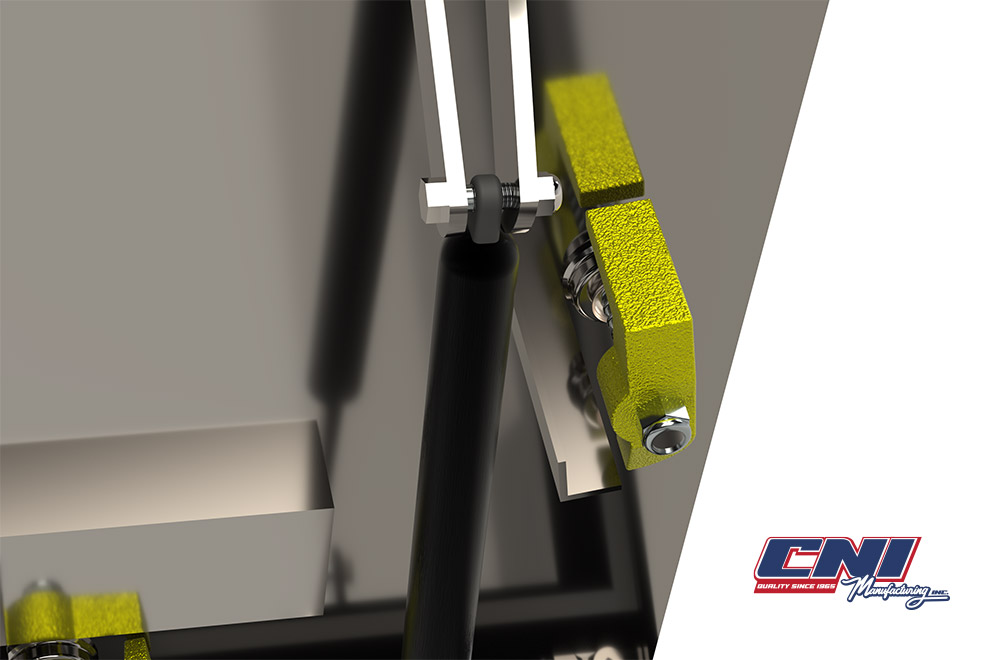

The cam-loks are zinc plated Ductile iron that can be tightened down with a 3/4″ socket wrench, and are also replaceable.
No more lost screws or difficulties in installation.
One piece rectangular ring stays put, implementing a water tight seal. The rectangular gasket sits in the ring 1/4″ & will not come off when cover is removed.
Will not rattle when run over by a vehicle.
Does not require a speedbump to keep water out.
