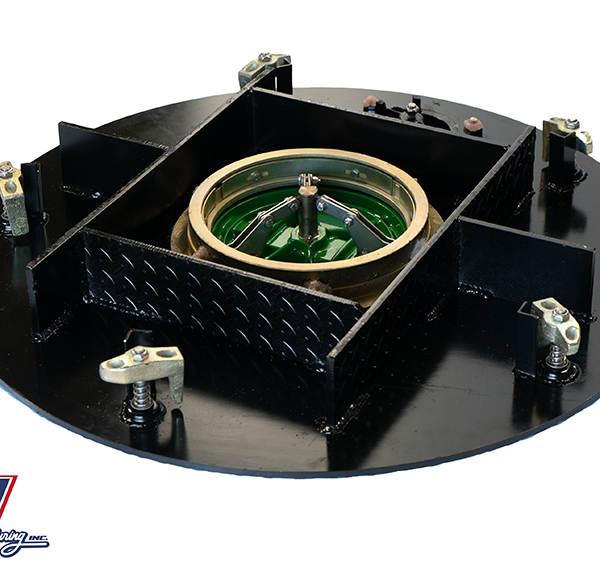

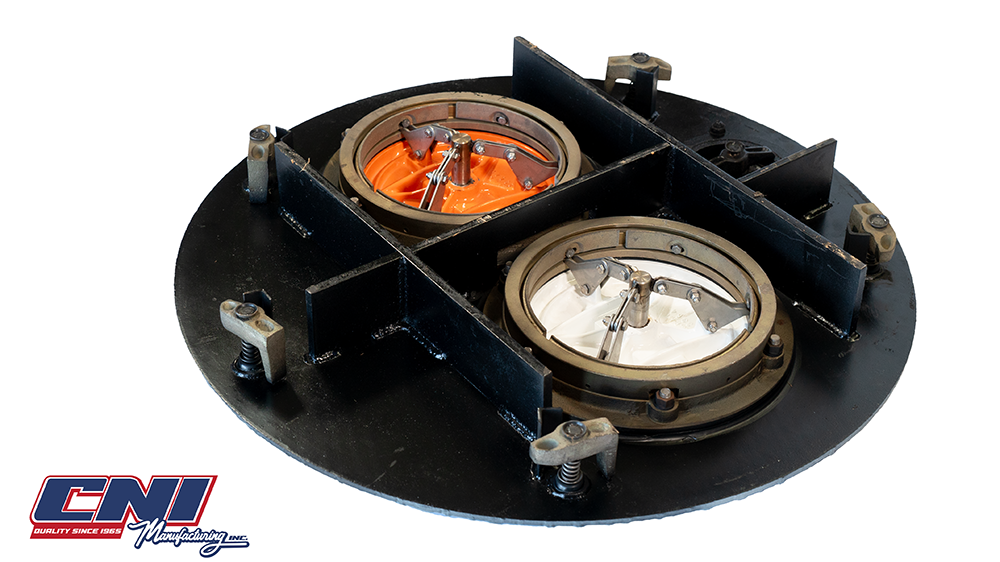

Multi-Port Manholes > Snap-Tight Fil-Spil Containment Maholes
Snap Tight Fil-Spil Containment Boxes
Ductile Iron Ring(Cam-lok style)

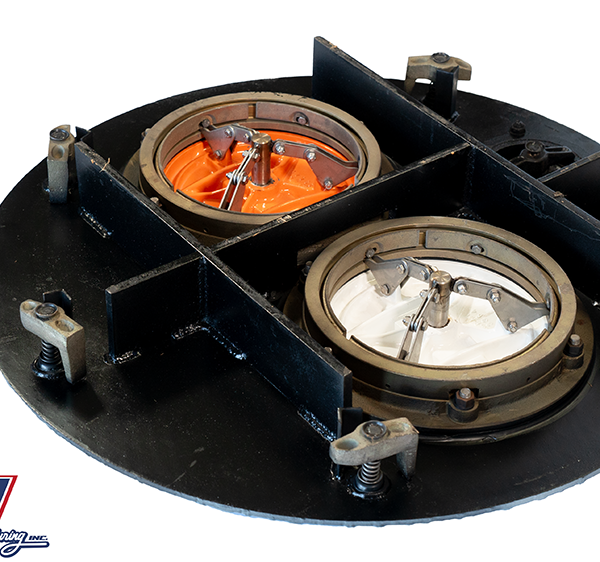

| Two Door |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
3601 |
4201 |
4801 |
| 5 Gallon Containment |
3602 |
4202 |
4802 |
| (2) 5 Gallon Containments, 16″ Center |
3605 |
4205 |
4805 |
|
|
|
|

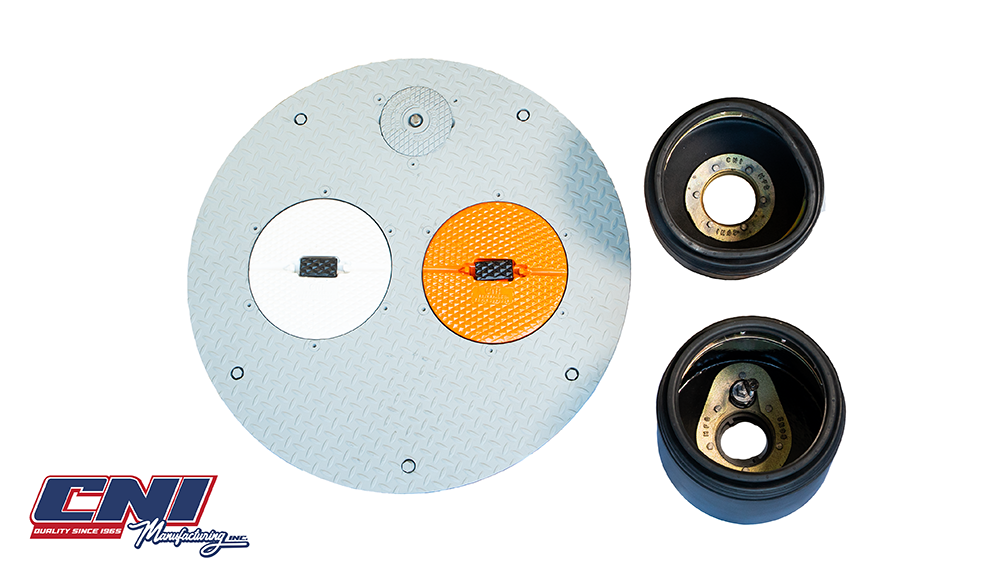

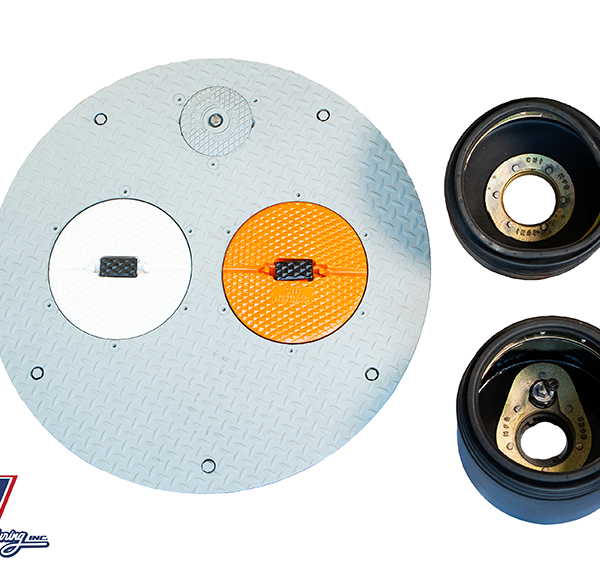

| Three Door |
42″ Dia |
48″ Dia |
|
| (2) 5 Gallon, 16″ Center |
4213 |
4813 |
|
|
|
|
|

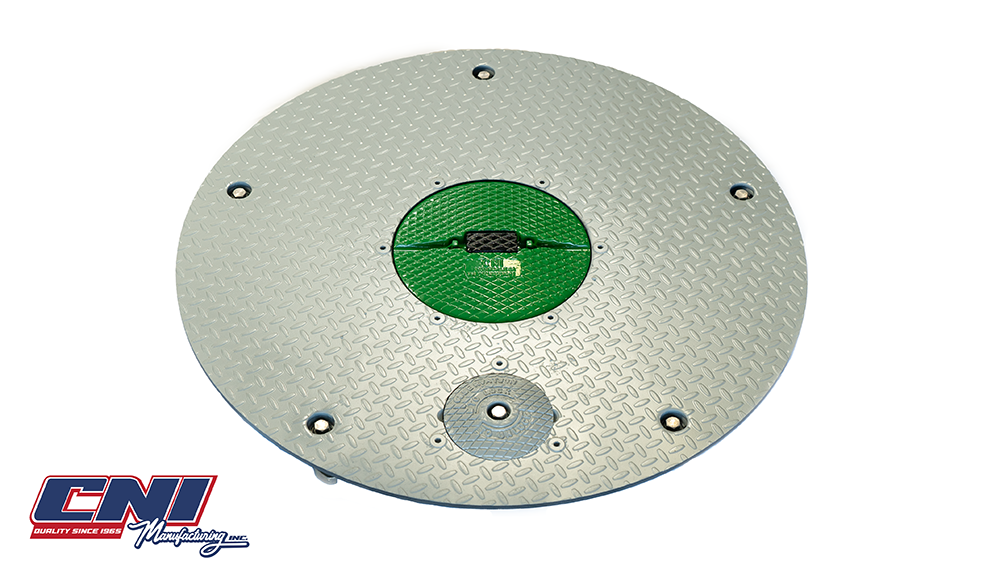

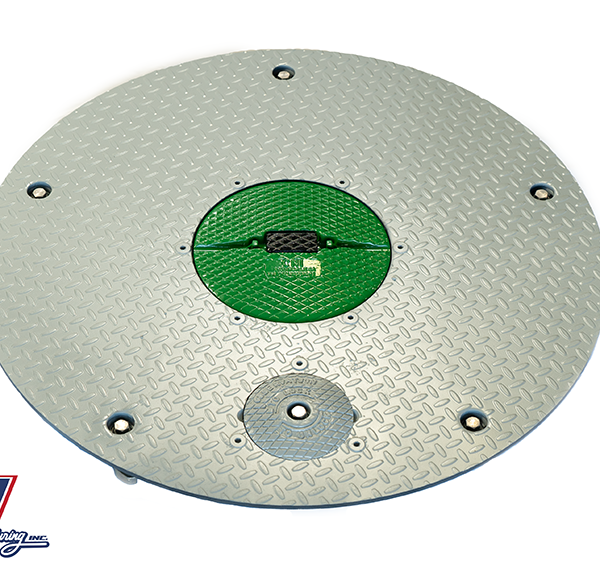

| One Door Center |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
3615 |
4215 |
4815 |
| 5 Gallon Containment |
3616 |
4216 |
4816 |
|
|
|
|
| One Door Offset |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
3620 |
4220 |
4820 |
| 5 Gallon Containment |
3621 |
4221 |
4821 |
|
|
|
|
|
|
|
|

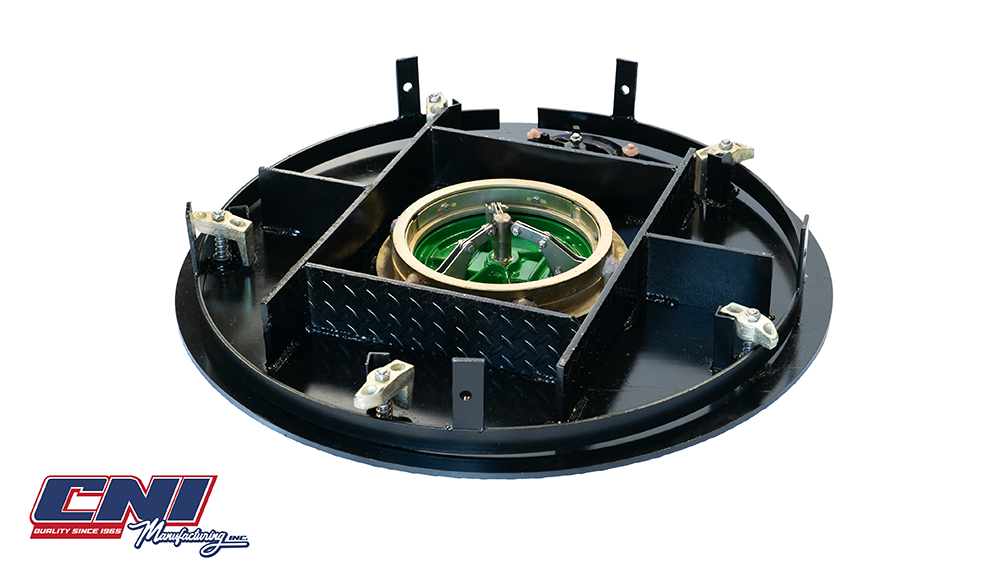

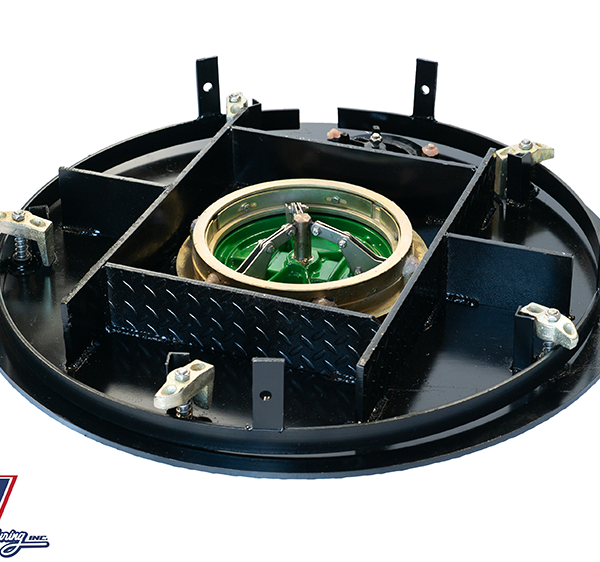

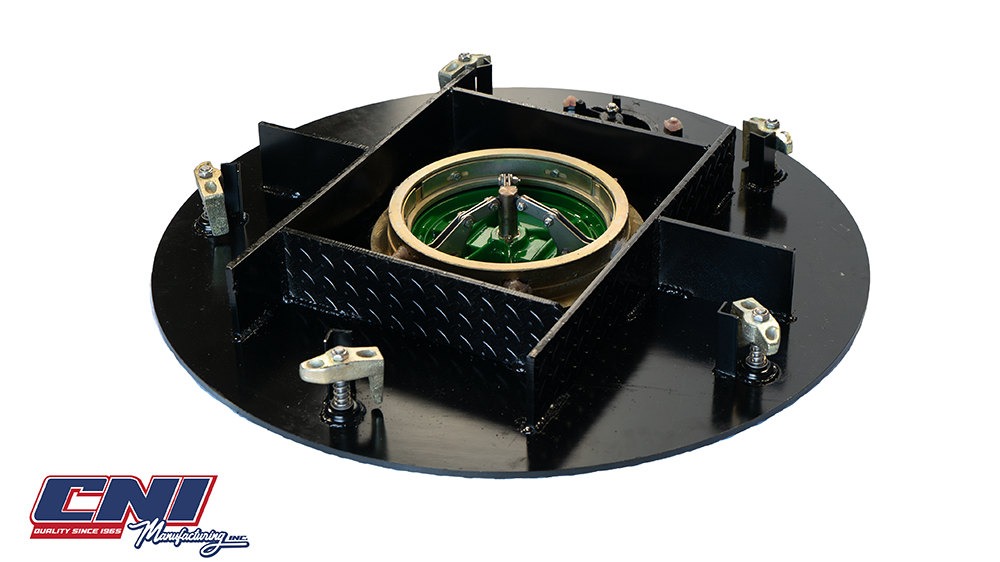

Rolled Steel Ring(Direct Bolt Down Style)
| Two Door |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
36-50 |
42-50 |
48+50 |
| 5 Gallon Containment |
36-51 |
42-51 |
48-51 |
| (2) 5 Gallon Containments – 14″ Centers |
36-53 |
42-53 |
48-53 |
| (2) 5 Gallon Containments – 16″ Centers |
36-54 |
42-54 |
48-54 |
|
|
|
|
| Three Door |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
——- |
42-55 |
48-55 |
| (2) 5 Gallon Conainments- 14″ Centers |
——- |
42-57 |
48-57 |
| (2) 5 Gallon Containments- 16″ Centers |
——- |
42-58 |
48-58 |
|
|
|
|
| One Door Center |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
36-60 |
42-60 |
48-60 |
| 5 Gallon Containment |
36-61 |
42-61 |
48-61 |
|
|
|
|
| One Door Offset |
36″ Dia |
42″ Dia |
48″ Dia |
| No Containment |
36-63 |
42-63 |
48-63 |
| 5 Gallon Containment |
36-64 |
42-64 |
48-64 |
|
Specifications:
- Outer Ring: Heavy Ductile Iron/ Rolled Steel
- Skirt: 14 Guage Galvanized Sheet Metal
- Cover: 3/8″ Reinforced Floor Plate, Complies With H20 Rating
- Access Covers: Low 5/8″ Profile Snap Tight Action
- Bellows Gasket: High Nitrile, Low swell Rubber, Compatable up to 85% Methanol
|
